CGS Premier

CGS Premier is an experiential marketing fabrication company that designs and builds custom vehicles and trailers for brand events. Timeline: July 2017 to February 2018. H&H Mechanical Contractors completed a full HVAC installation for new construction at CGS Premier in Muskego, Wisconsin, serving both office and production areas.

Scope of Work

H&H Mechanical Contractors provided and installed:

H&H Mechanical provided and installed the following commercial HVAC systems:

• 7 Carrier VAV RTUs for office and production areas, with associated supply and return ductwork
• 7 RTU roof curbs
• All necessary natural gas piping serving RTU units
• 9 VAV boxes in the office area for zoning
• Carrier BACnet i-Vu control system for HVAC controls throughout the office area
• All associated ductwork and controls for the VAV system
• 1 fan serving the office IT room

Results

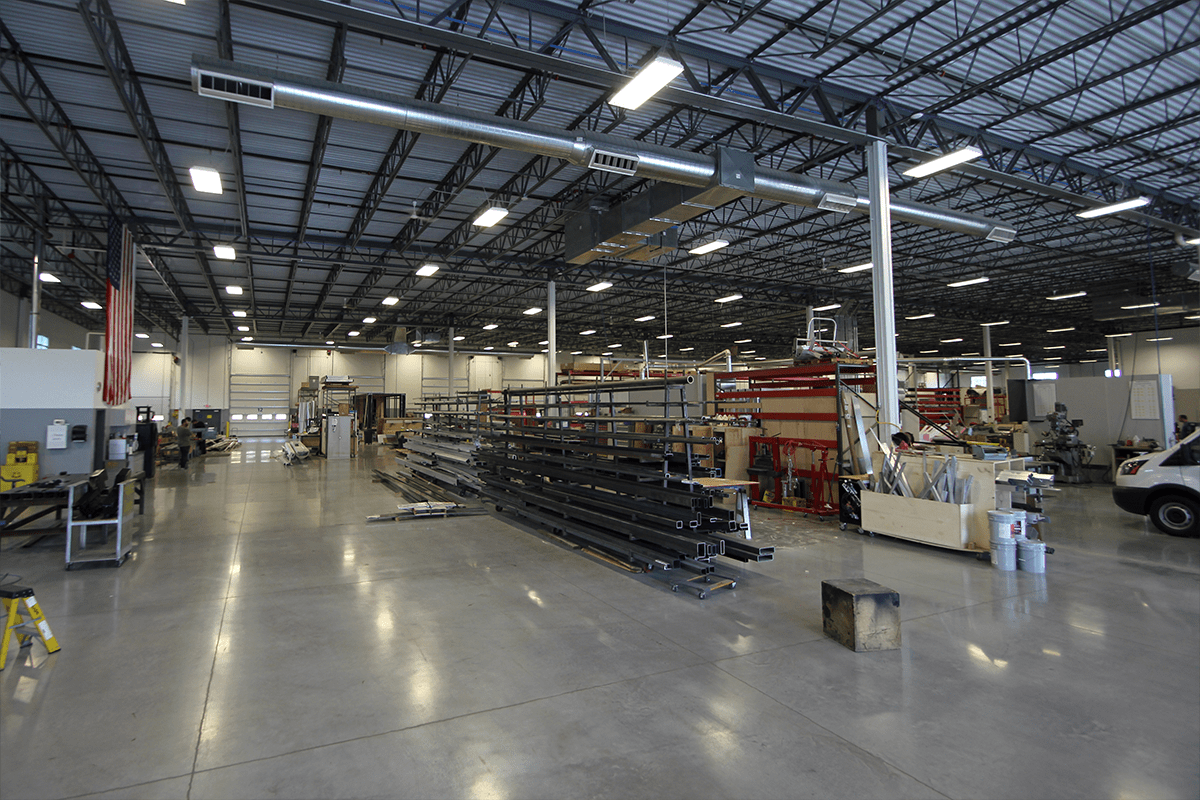

This project delivered a complete heating, cooling, and ventilation system designed to serve high-bay warehouse areas and associated office spaces. Equipment was selected and installed per approved construction documents, mechanical schedules, and applicable codes.

Rooftop HVAC units provided high-efficiency gas-fired heating and DX cooling. Supply and return duct systems were shop-fabricated and installed to SMACNA standards, with air distribution planned for high-ceiling conditions to support proper air throw, circulation, and temperature uniformity in the occupied zone.

Dedicated outside air and exhaust systems were installed to meet code-required ventilation rates and indoor air quality needs. HVAC equipment was integrated with programmable controls to support zoning between warehouse and office areas, scheduling, and setback operation.

Final startup, testing, air balancing, and commissioning verified equipment operation, airflow quantities, temperature performance, control sequences, and safety interlocks. Closeout documentation was completed to support owner turnover.
