Banker Wire

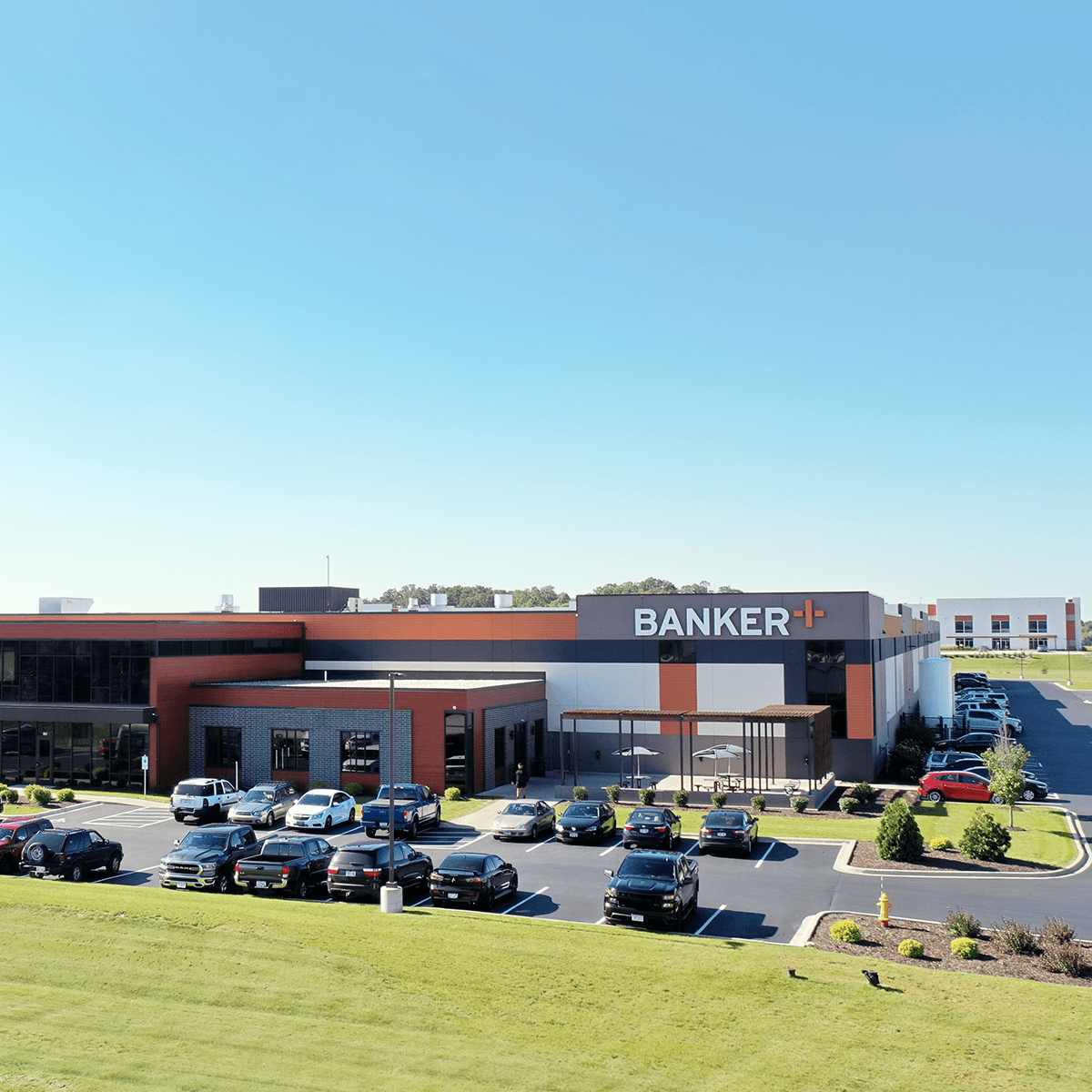

Banker Wire is a worldwide manufacturer of woven and welded wire mesh for architectural and industrial applications. Timeline: July 2018 to March 2019. H&H Mechanical provided and installed commercial HVAC systems for office and maintenance areas, including RTUs, ductwork, make-up air systems, gas piping, and zoning.

Scope of Work

H&H Mechanical Contractors provided and installed:

H&H Mechanical provided and installed the following systems:

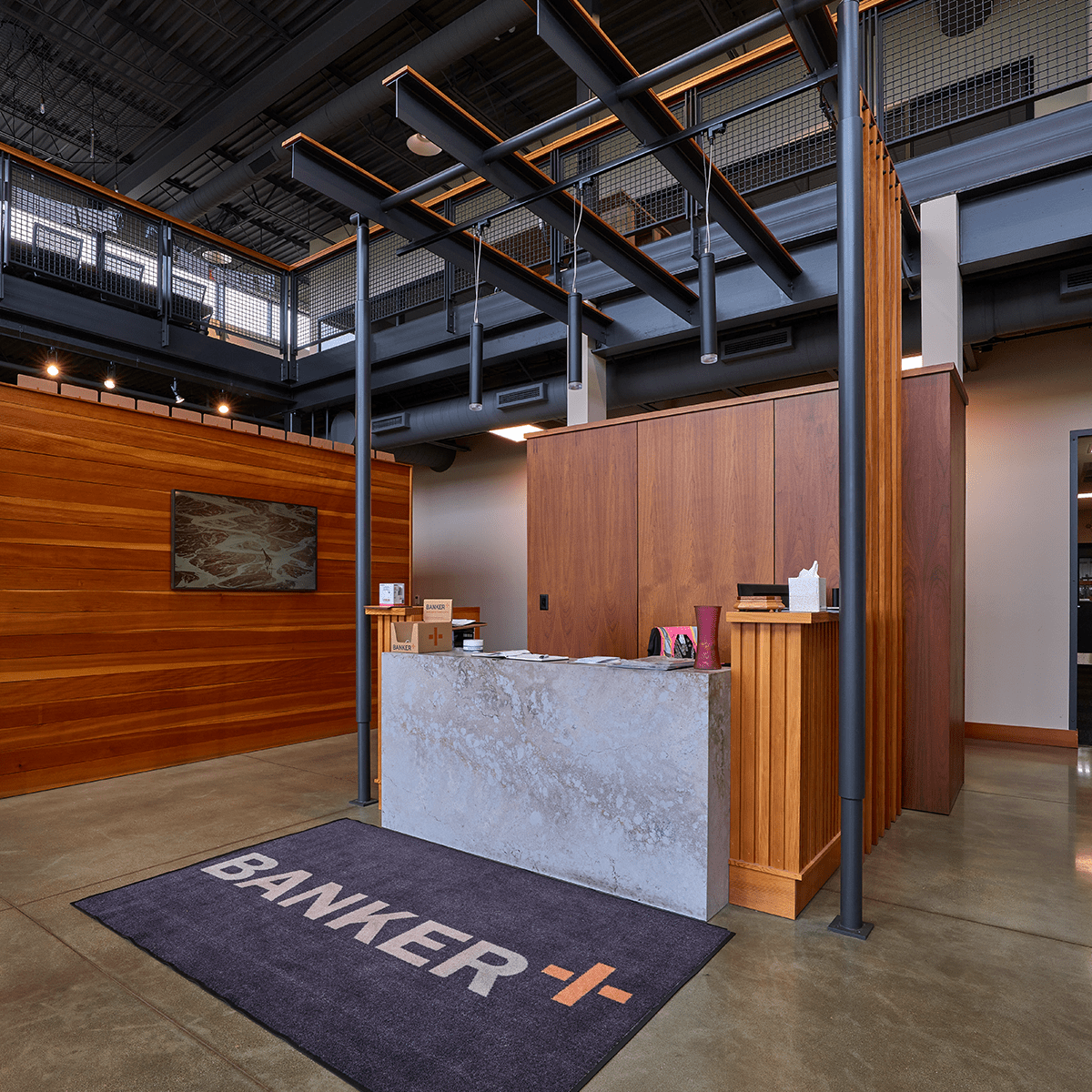

• 3 Carrier VAV RTUs for the office and maintenance area, with associated supply and return ductwork
• 3 RTU roof curbs
• All necessary natural gas piping serving the RTUs and make-up air (MUA) units
• 20 VAV boxes in the office area for zoning
• Carrier BACnet i-Vu control system for HVAC controls throughout the office and maintenance area
• All associated ductwork and controls for the VAV system

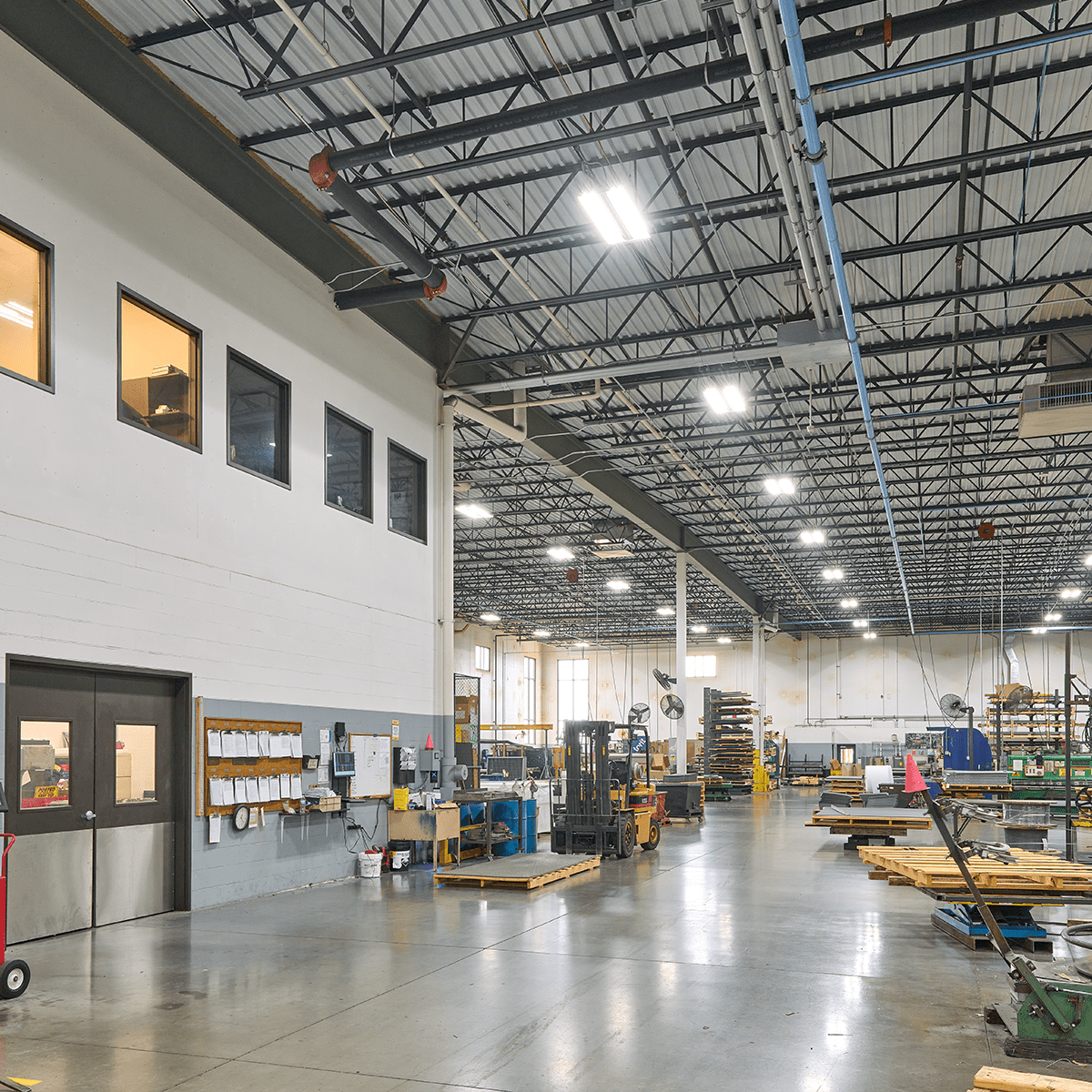

• 6 exhaust fans interlocked to 4 make-up air units in the production area
• 1 ductless split system serving the office IT room

Results

The HVAC system for the Banker Wire project was completed per engineered drawings, applicable mechanical codes, and manufacturer installation standards. The work included mechanical rough-in, equipment installation, ductwork distribution, piping, controls integration, and final commissioning.

Custom ductwork was installed to SMACNA standards, sealed and insulated to support airflow performance and reduce energy loss. Refrigerant piping was sized and supported, then pressure tested, evacuated, and charged per manufacturer specifications. Gas piping and condensate drainage were installed with access in mind for service and long-term reliability. Electrical connections and low-voltage controls were completed and tested for proper sequencing.

Final startup included airflow verification, system balancing, safety checks, and performance testing. The completed HVAC and ventilation systems provide dependable heating and cooling, balanced air distribution, and efficient operation to support Banker Wire's facility needs.
